Product Performance
Mainly suitable for Beverage cup cup series
Automatic stacking feeding
Cursor positioning, overprinting accurate.
The maximum printing speed can reach up to 3200pcs/hr.
The automatic vertical rotary milk tea cup screen printing machine is a curved surface printing model, mainly suitable for beverage cups such as milk tea cups and coffee cup series. This automatic screen press machine uses stacking function feeding, blowing feeding, and also features a counting function. This kind of cylindrical screen printing machine is easy to operate, fast speed, save time, labor and cost; And can be configured according to the demand, choose monochrome or color printing, to meet the different needs of products.
Printing speed | 1color 2800-3200PCS | 2 color 1500-2200PCS |
Power Supply | AC220V 50/60hZ 5KW | |
Air Supply | 0.4~0.7Mpa | |
Maximum printing diameter | 100mm | |
Screen frame size | 250*450mm | |
Machine Dimension | 1600mm*1400mm*1950mm | |
Weight | 1400KG | |

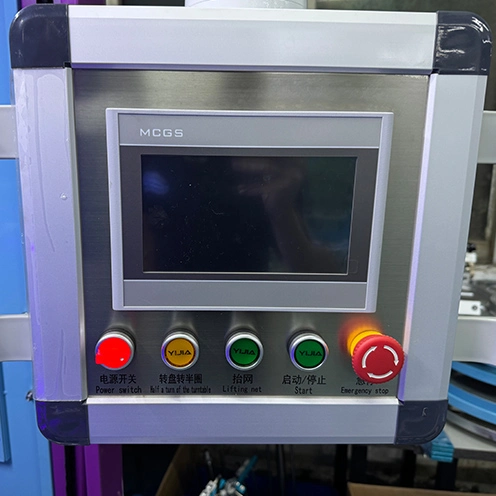

Touch screen +PLC compiler control action.
Automatic printer design with visual automation mode of operation.
Pre press airsickness surface treatment.
Diameter 600 rotary, 8, 12 station rotary printing
German color calibration, accurate color matching.

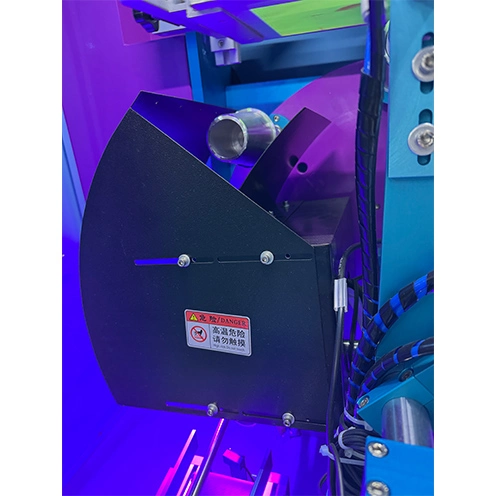

Automatic post-press drying device system processing.
Automatic blanking section and with counting function.
Rotary table rotation mode: servo motor
