Product Performance
Suitable for screen printing on round, oval, square, triangular
Full servo drive system
Independent vacuum system
Support 1-8 color printing
CCD positing
Hot stamping & labbing

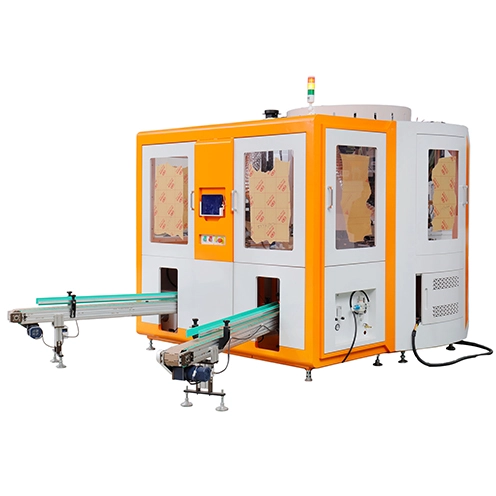

This servo printer is suitable for screen printing on round, oval, square, triangular and other shaped surfaces of containers such as cosmetics, wine, beverage bottles, and general-purpose packaging.
LED UV curing is also servo-driven. The curing time can be set arbitrarily according to the requirements of product printing, which greatly increases the adhesion of the ink
It has an independent vacuum system, and the anti-wear products can be made by vacuum suction. Effectively avoid product abrasion during the printing process, and ensures independent vacuum for more stable printing quality.

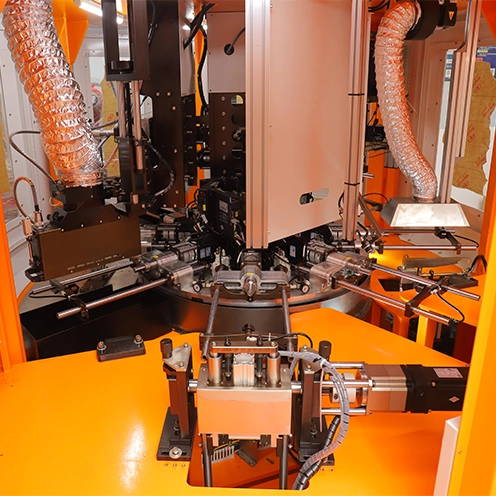

Equipped with a high-precision imported servo turntable and a full-servo drive system, this automatic screen press machine offers high printing speed, easy debugging, and stable and reliable performance.
Printing in the same color on round, oval, square, triangular and other shapes' surface of containers can be completed at one time.
Simple debugging of replacement models without gears. Thus avoiding the inaccuracy of color registration after the wear of the rack and pinion, and significantly save time on tuning.
Shape of Printed Object | Cylindrical, Cone, Cube etc |
Printed Object Dimension | Φ100mm, L：300mm |
Power Supply | 380v, 3 phase, 50Hz, 4.5kw |
Power | 25kw |
Air pressure | 6-8Bar |
Max printing speed | 4200Pcs/hr |
Machine Dimension | 2735 (L) x 2450 (W) x 2315 (H) mm |
Total Power | 3.8Kw/4.6Kw |
Weight | 3500KG |
Germany BECKHOFF motion controller, and 10" ipad mobile touch screen.

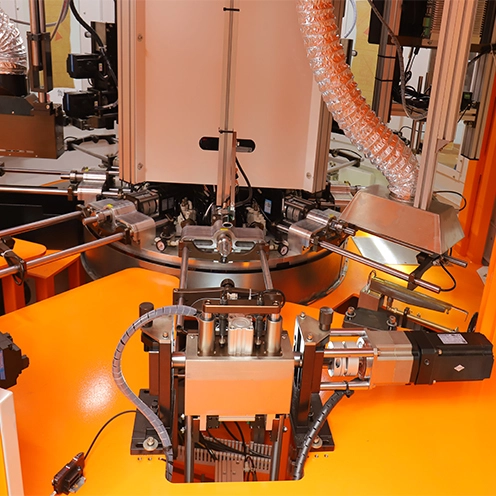

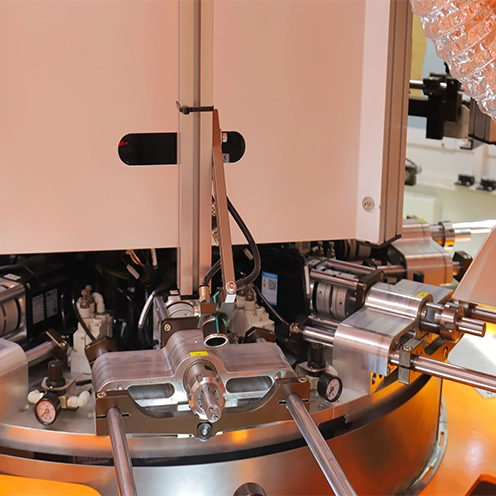

The 12-axis tube position holder is controlled and operated by absolute servo motor.
The main drive is controlled by high precision reducer with absolute value servo motor.
Ball screws and guide rails al adopt international famous brands, which have higher precision and longer life.
Flame treating with servo drive can achieve arbitrary speed adjustment.
This screen printing machine from Haover can achieve multi-color overprinting and precise control of patterns based on product surface position, via bottle opening or pattern positioning point detection by laser sensor or CCD vision detection.
CCD post-print inspection system can also be configured, and leave space for subsequent additions.
