Product Performance
Suitable for pad printing on cloth
Print speed up to 1200 pcs per hour
Automatic feeder and unloading
PLC control system

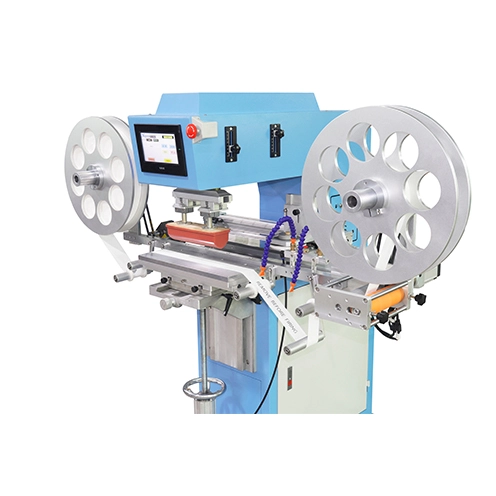

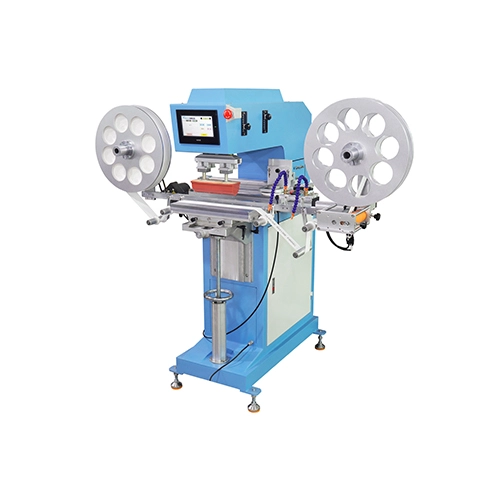

The roll-to-roll oil cup pad printer adopts precise roll material feeding control technology to ensure uniformity and stability of the ink. At the same time, the roll-to-roll design of the 1 color pad printing machine can automatically complete the loading, positioning, printing, and unloading process, greatly improving production efficiency. This makes it ideal for high-precision, single-color printing applications on various materials.
Plate size | 125x500x10mm |
Ink Cup size | Φ110mm |
Front and back stroke | 0-200mm |
Up and down stroke | 0-80mm |
Print capacity | 1000-1200 PCS/hr |
Air pressure | 6-8bar |
Power | 0.5KW |
Weight | 240KG |
Main machine size | L1550xW950xH1400mm |
PLC electric pad printing machine control system
Automatic feed after printing automatic rewinding material
Ink cup inking structure safety and environmental protection
The one-color pad printer combines efficiency, precision, and user-friendly operation, providing a reliable solution for consistent single-color pad printing in manufacturing environments.
