Product Performance
Specially designed for double-color screen printing on circular objects
The maximum printing speed can reach up to 4200pcs/hr.
PLC & touch screen operation
UV curing & infrared drying,
With automatic feeding system and discharge manipulator

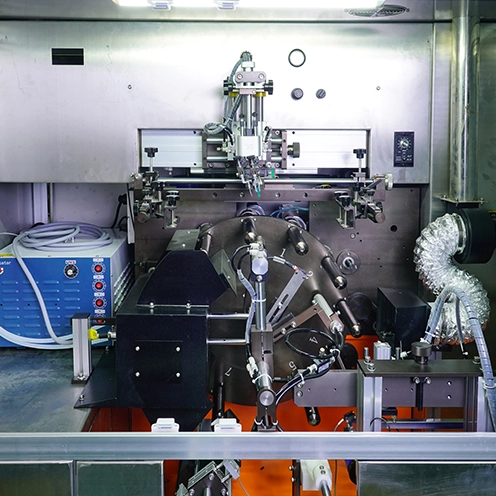

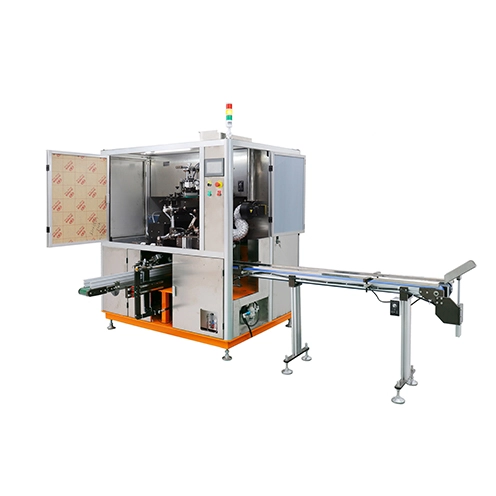

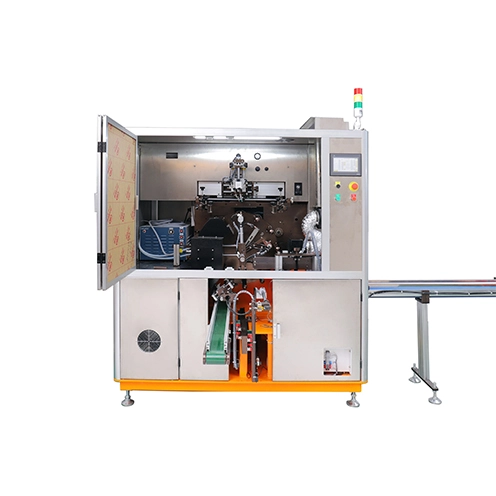

Specially designed for double-color screen printing on circular objects, such as tubes, bottle caps, centrifuge tube, cosmetic jars and so on, this automatic cylinder screen printing machine from Haover can achieve multicolor printing and precise color register.
Achieve multicolor printing and precise color register.

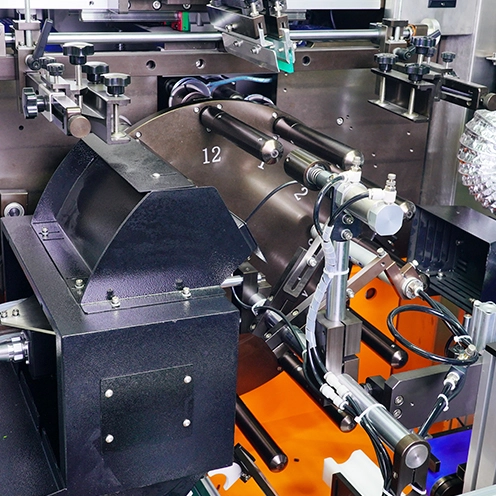

Main drive system uses transmission equipment of famous brand from Europe with precise high-speed indexer, so it can make operations more stable and reliable. The maximum printing speed can reach up to 4200pcs/hr.

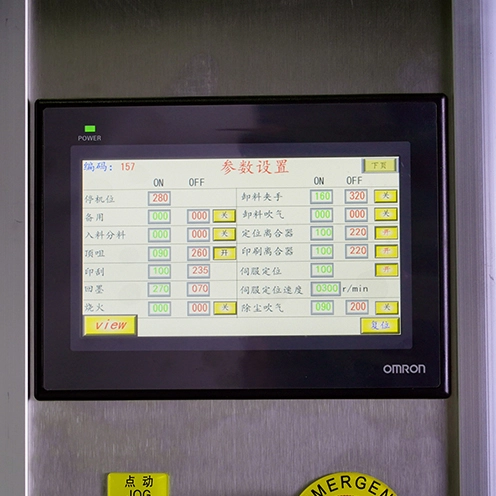

Equipped with a world-famous PLC controller and convenient touch screen, this fully automatic screen printing machine ensures the entire operation is easy and simple.
Printing ink can be solidified by UV curing or infrared drying, and gain more ideal solidification effect no the base of ensuring stable performance and power saving.

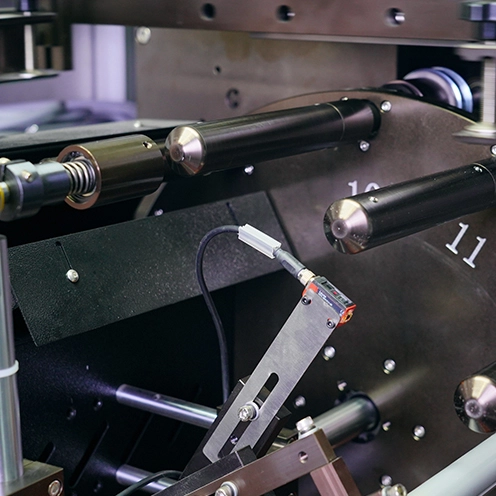

Be provided with automatic monitoring function such as ionic wind dedusting, "no object, no printing" , automatic alarm due to low air pressure and waste or wrong material, etc.
With automatic feeding system and discharge manipulator, not only ensure continuous and stable printing operation, but also avoid scratching surface of printed object during printing process and guarantee operator' s safe operation.
Printed Object Dimension | Φ5mm-35mm, H: 20mm-230mm |
Power Supply | 380v, 3 phase, 50Hz, 4.5kw |
Air Supply | 6-8Bar |
UV Lamp Power UV | 3.5Kw |
Max printing speed | 4200Pcs/hr |
Machine Dimension | 5000 (L) x 2900 (W) x 2200 (H) mm |
Total Power | 3.8Kw/4.6Kw |
Weight | 3000KG |
Automatic feeder (bowl vibrating/lifting system, can save manpower and realize fully automatic production)
Automatic Capping System (for centrifuge tubes, condenser tubes; can save manpower and realize fully automatic production)
UV LED system (higher efficiency, more environmental-protection)
Automatic silicone oil injection system (for syringes)
Servo & Cursor Positioning System (can achieve precise color register for offset printing and hot stamping)
Mechanical positioning device (can realize multi-color overprinting)
Transformation function between screen printing and hot stamping.
